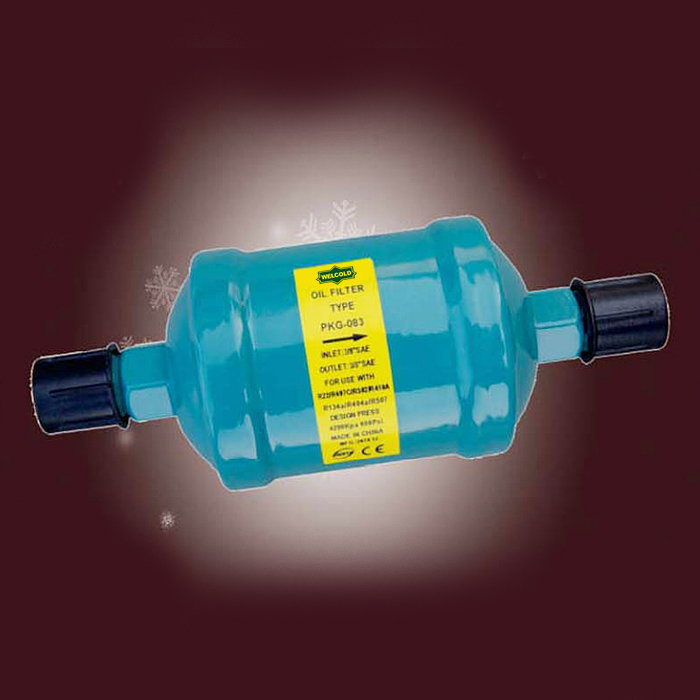

Oil Filter Type OFO

Model Series

APPLICATIONS
WELCOLD Refrigeration's Oil Filter can be used in both low and high pressure oil management systems, they can filtrate 99% of 3µm particle but keep enough flow rate to maintain low pressure drop. The unique drying feature of the PKG model are particularly suited for systems using POE oil. This type of oil is more hydroscopic than mineral oil. This means that POE oil absorbs moisture at a much higher rate. Moisture in a refrigeration system can produce problems and / or harmful conditions.

OFO Series model can be fitted in the oil return line between the Oil Separator and Oil Receiver, instead of fitting one Oil Strainers per Oil Level Regulator. These models will also remove more debris than traditional oil strainers.

MAIN FEATURE

• High flow capacity with low pressure drop
• Particle retention down to 3 microns
• High flow capacity with low pressure drop
• Suitable replacement for individual Oil Strainers on oil return line

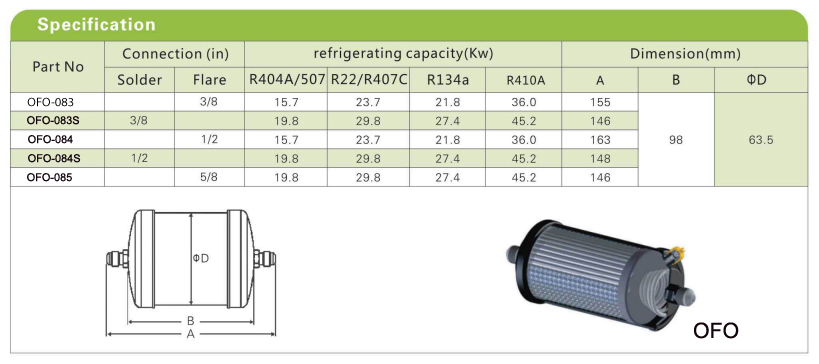

• TECHNICAL SPECIFICATIONS
  Maximum working pressure = 507 PSI (35 Bar)
• Allowed operating temperature = -10℃ ~ +100℃
• For use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to steel and copper.
