SCFD-PKEK-CE - Solid Core Filter Drier Type PKEK, CE

SKU: SCFD-PKEK-CE

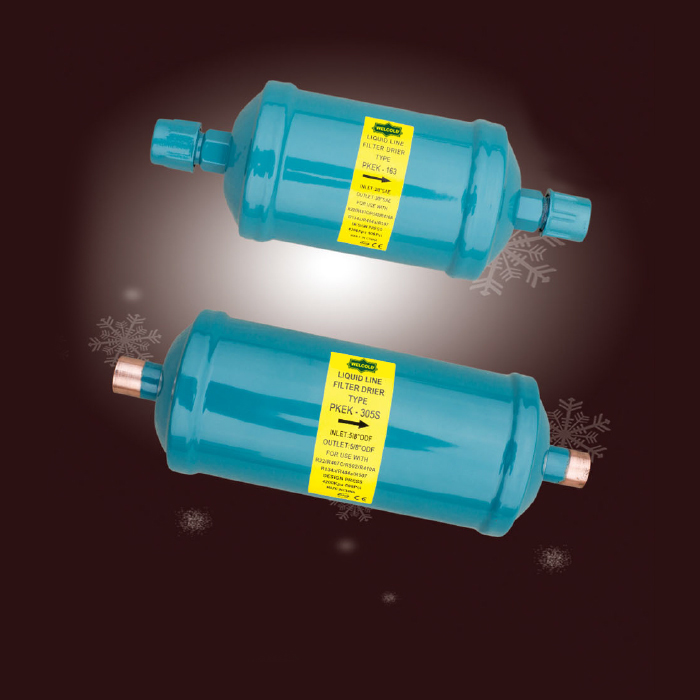

Solid Core Filter Drier Type PKEK, CE

Model Series

• PKEK-032
• PKEK-032S
• PKEK-033
• PKEK-033S
• PKEK-052
• PKEK-052S
• PKW-0617
• 0
• 0


APPLICATIONS
HPEOK Refrigeration's Liquid Line Filter Driers provide a top level protection refrigeration and air conditioning systems. They are designed to capture and retain solid particles and moisture from circulating throughout the system, which can create acid that may damage to compressor and other components.

If the filter drier's drying capacity is insufficient, the compressor may be damaged - which may in turn lead to a complete system breakdown. And damage caused by water in the refrigerant can be costly. A new compressor is so expensive and on top of the cost of production standstill.

HPEOK Refrigeration filter driers are suitable for HCFC, HFC and their associated oils, including R410A, optional for CO2 refrigerants.


CORE

  • The standard core for PKEK is composition of 100% molecular sieve, while 80% molecular sieve with 20% activated alumina on request. The user should select the appropriate core based on refrigerant and oil types. The model should then be selected based on the required drying and liquid capacities.
